- Dual channel serial interface
with 5V power supply for Oudie or PNA. - Connects GPS source such as a Flarm to a Navigation device like a Oudie, PC or PNA.
12 volt power feed through to Flarm, no other power connections required.
Dual channel input where two serial data devices are connected via IGC connectors ie, Flarm plus Flight computer.
This feature is implemented in the LK8000 PNA or Tasman Flight Track.
- Data converter cable
- Connects TTL serial input PNA display divices such as Oudie or LK8000 to Tasman Flight Pack Air Data Engine.
The connector housing contains active circuitry for converting RS232 serial data to TTL for connection to a PNA device. 5V power generated from the high efficiency interference free power supply of the Tasman Flight Pack, is passed to the display PNA for its power requirements.
Order
DSA10
Dual channel with 5V power supply for Display device.
Dual channel with 5V power supply for Display device.
Order
DCMP-T

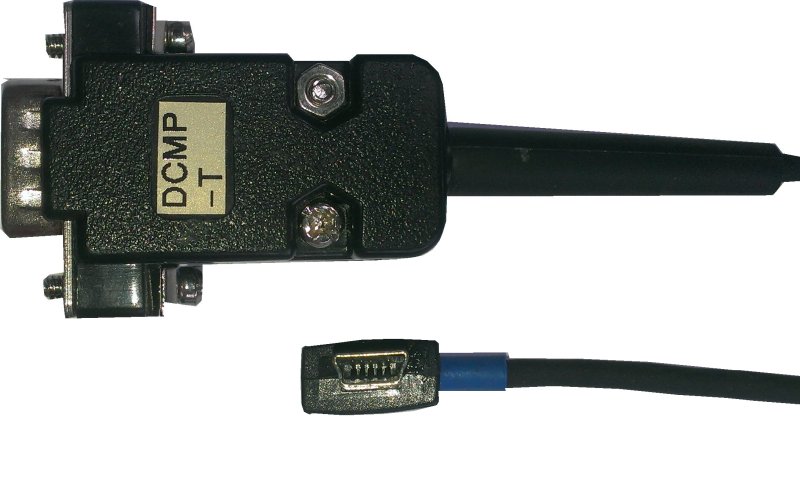

DB9m active plug to Micro USB to suit Oudie.
DCMP-A
DB9m active plug to Micro usb to suit LK8000.
DB9m active plug to Micro USB to suit Oudie.
DCMP-A
DB9m active plug to Micro usb to suit LK8000.
Serial data cables
for connecting GPS source and display devices to Tasman Flight Pack Air Data Engine.
Most cable have DB9 type connectors at one end and feed through power to the connected device
either 5 volts on pin 8, or 12 volts on pin 7.
For PC or PNA display cables, the cable material is ultra flexible and of compact size.
Most cable have DB9 type connectors at one end and feed through power to the connected device
either 5 volts on pin 8, or 12 volts on pin 7.
For PC or PNA display cables, the cable material is ultra flexible and of compact size.
|
GPS source cable |
connector A |
connector B |
Order |
Comments |
|
Flarm Volks EW etc. |
IGC | DB9f | DCFP-01 |
12volt feed through DB9f/7 |
|
PC Display cable |
|
Ipaq 22xx,38xx,39xx etc Ipaq 3100,3600,3700 Palm |
22 pin Ipaq 12 pin Ipaq Palm |
DB9m |
DCMP-22 DCMP-12 DCMP-P |
5volt feed through DB9f/8 |
|
PNA cable |
|
Oudie Flight Track (LK8000) |
|
DB9f |
DCMP-U DCMP-T |
Active plug TTL-RS232 converter |
|
Others |
|
Flarm>>V3 display etc |
RJ45 | RJ12 | DCRJ-01 |
